RightMark Audio Analyzer test report
| Testing device | DjukePoweramp NoLoad |
| Sampling mode | 24-bit, 96 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -7.7 dB / -7.7 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.04, -0.23 |
Very good |
| Noise level, dB (A) | -102.5 |
Excellent |
| Dynamic range, dB (A) | 102.4 |
Excellent |
| THD, % | 0.0004 |
Excellent |
| THD + Noise, dB (A) | -95.9 |
Excellent |
| IMD + Noise, % | 0.0022 |
Excellent |
| Stereo crosstalk, dB | N/A |
N/A |
| IMD at 10 kHz, % | 0.0026 |
Excellent |
| General performance | Very good |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.51, +0.04 |
| From 40 Hz to 15 kHz, dB | -0.23, +0.04 |

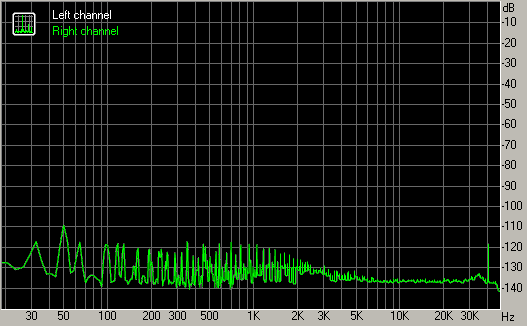

Noise level
Left |
Right |
|
| RMS power, dB | -101.1 |
-101.1 |
| RMS power (A-weighted), dB | -102.5 |
-102.5 |
| Peak level, dB FS | -82.1 |
-82.1 |
| DC offset, % | -0.0 |
-0.0 |

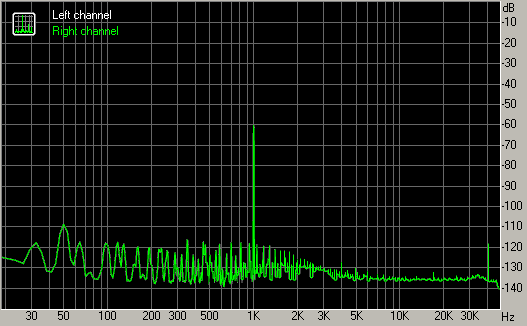

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +101.0 |
+101.0 |
| Dynamic range (A-weighted), dB | +102.4 |
+102.4 |
| DC offset, % | +0.00 |
+0.00 |
THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0004 |
+0.0004 |
| THD + Noise, % | +0.0018 |
+0.0018 |
| THD + Noise (A-weighted), % | +0.0016 |
+0.0016 |
Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0022 |
+0.0022 |
| IMD + Noise (A-weighted), % | +0.0019 |
+0.0019 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0024 |
0.0024 |
| IMD + Noise at 10000 Hz, | 0.0024 |
0.0024 |
| IMD + Noise at 15000 Hz, | 0.0031 |
0.0031 |
