RightMark Audio Analyzer test report
| Testing device | DAC - RC lowpass added |
| Sampling mode | 24-bit, 48 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -7.2 dB / -7.3 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.02, -0.10 |
Excellent |
| Noise level, dB (A) | -108.7 |
Excellent |
| Dynamic range, dB (A) | 109.0 |
Excellent |
| THD, % | 0.0003 |
Excellent |
| THD + Noise, dB (A) | -94.7 |
Very good |
| IMD + Noise, % | 0.0027 |
Excellent |
| Stereo crosstalk, dB | -107.8 |
Excellent |
| IMD at 10 kHz, % | 0.0074 |
Excellent |
| General performance | Excellent |

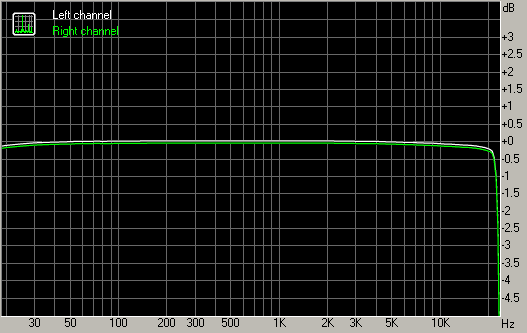

Frequency response
| From 20 Hz to 20 kHz, dB | -0.20, +0.02 |
| From 40 Hz to 15 kHz, dB | -0.10, +0.02 |

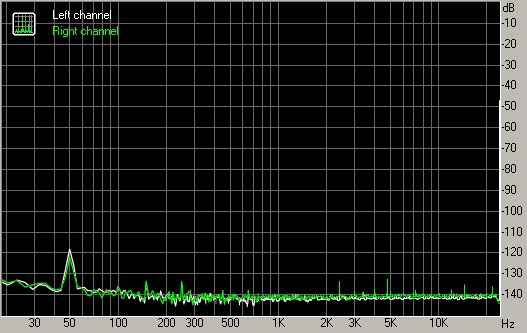

Noise level
Left |
Right |
|
| RMS power, dB | -107.9 |
-107.2 |
| RMS power (A-weighted), dB | -109.2 |
-108.2 |
| Peak level, dB FS | -90.5 |
-90.7 |
| DC offset, % | +0.0 |
+0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +107.8 |
+107.8 |
| Dynamic range (A-weighted), dB | +109.1 |
+108.8 |
| DC offset, % | -0.00 |
-0.00 |
THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0002 |
+0.0003 |
| THD + Noise, % | +0.0020 |
+0.0020 |
| THD + Noise (A-weighted), % | +0.0018 |
+0.0019 |
Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0027 |
+0.0027 |
| IMD + Noise (A-weighted), % | +0.0024 |
+0.0025 |
Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -106 |
-108 |
| Crosstalk at 1000 Hz, dB | -106 |
-108 |
| Crosstalk at 10000 Hz, dB | -104 |
-105 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0043 |
0.0044 |
| IMD + Noise at 10000 Hz, | 0.0073 |
0.0074 |
| IMD + Noise at 15000 Hz, | 0.0106 |
0.0106 |
