RightMark Audio Analyzer test report

Testing device BalancedReceiver
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.2.3


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -7.6 dB / -7.6 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity inverted/inverted



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.02
Excellent
Noise level, dB (A)
-99.2
Excellent
Dynamic range, dB (A)
99.2
Excellent
THD, %
0.0005
Excellent
THD + Noise, dB (A)
-93.2
Very good
IMD + Noise, %
0.0030
Excellent
Stereo crosstalk, dB
-51.7
Poor
IMD at 10 kHz, %
0.0031
Excellent
General performance

Very good



Frequency response

Spectrum graph

From 20 Hz to 20 kHz, dB
-0.07, +0.01
From 40 Hz to 15 kHz, dB
-0.02, +0.01

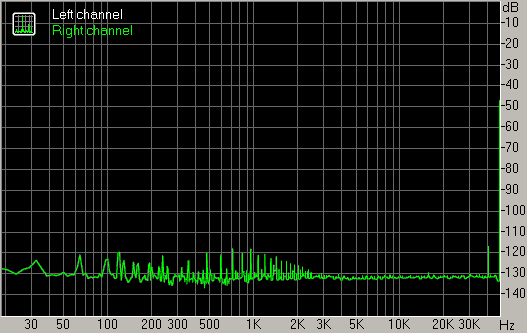

Noise level

Spectrum graph


Left
Right
RMS power, dB
-98.2
-98.2
RMS power (A-weighted), dB
-99.2
-99.2
Peak level, dB FS
-76.3
-76.3
DC offset, %
+0.0
+0.0

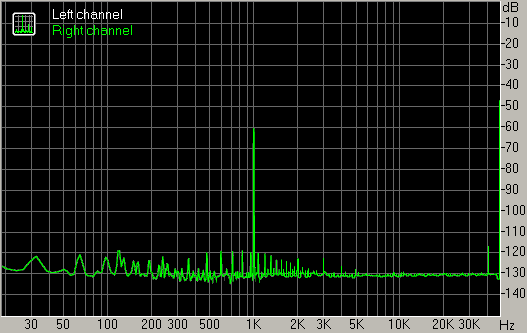

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+98.2
+98.2
Dynamic range (A-weighted), dB
+99.2
+99.2
DC offset, %
-0.00
-0.00



THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0005
+0.0005
THD + Noise, %
+0.0025
+0.0025
THD + Noise (A-weighted), %
+0.0022
+0.0022

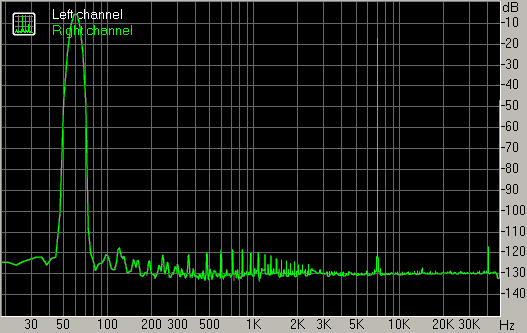

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0030
+0.0030
IMD + Noise (A-weighted), %
+0.0027
+0.0027

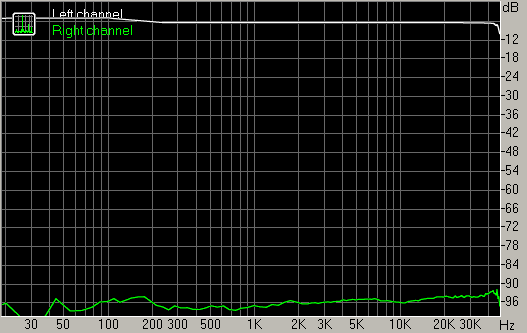

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-4
-94
Crosstalk at 1000 Hz, dB
-5
-96
Crosstalk at 10000 Hz, dB
-5
-95



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0031
0.0031
IMD + Noise at 10000 Hz,
0.0031
0.0031
IMD + Noise at 15000 Hz,
0.0031
0.0031
